VBC Racing

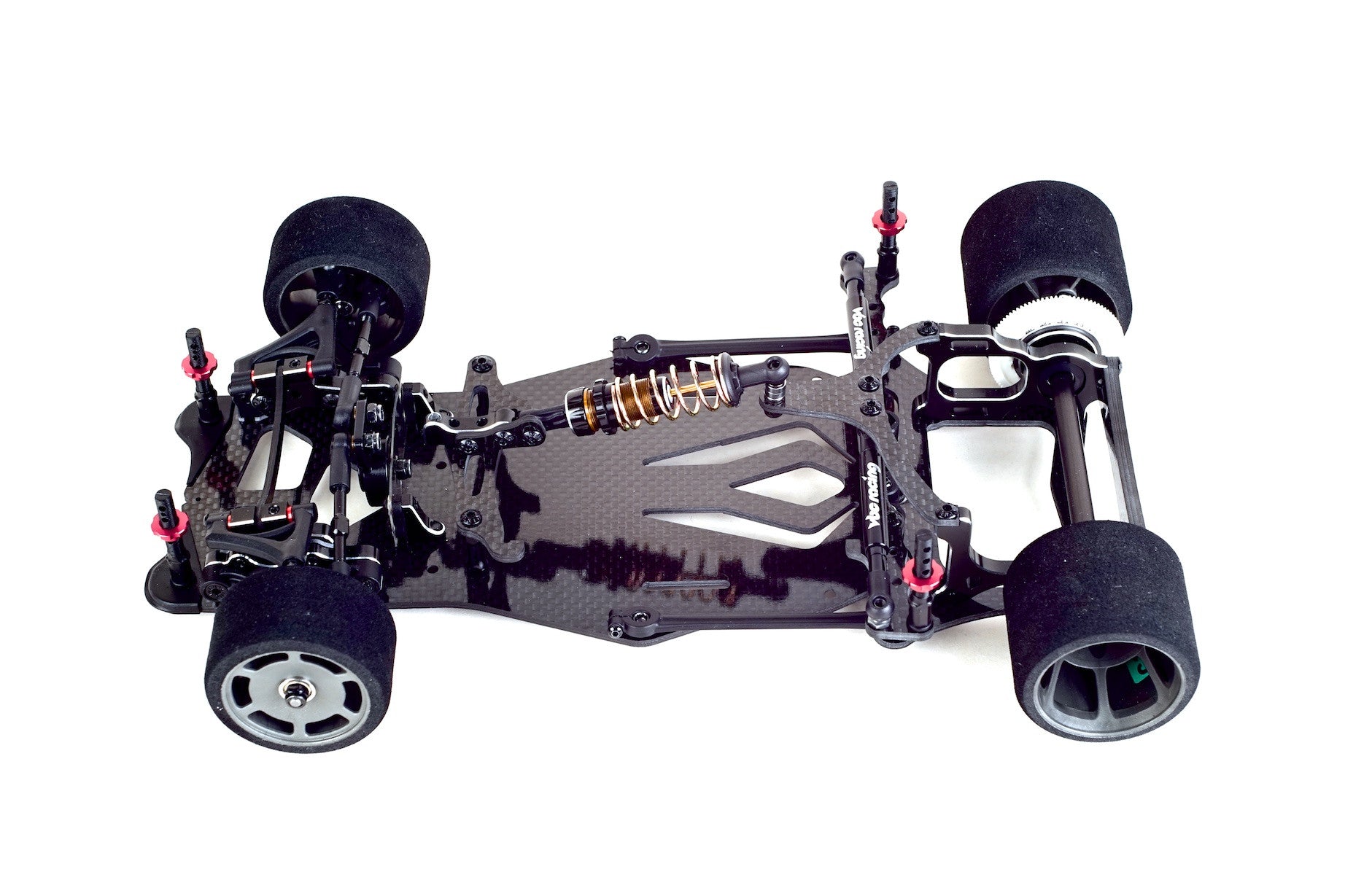

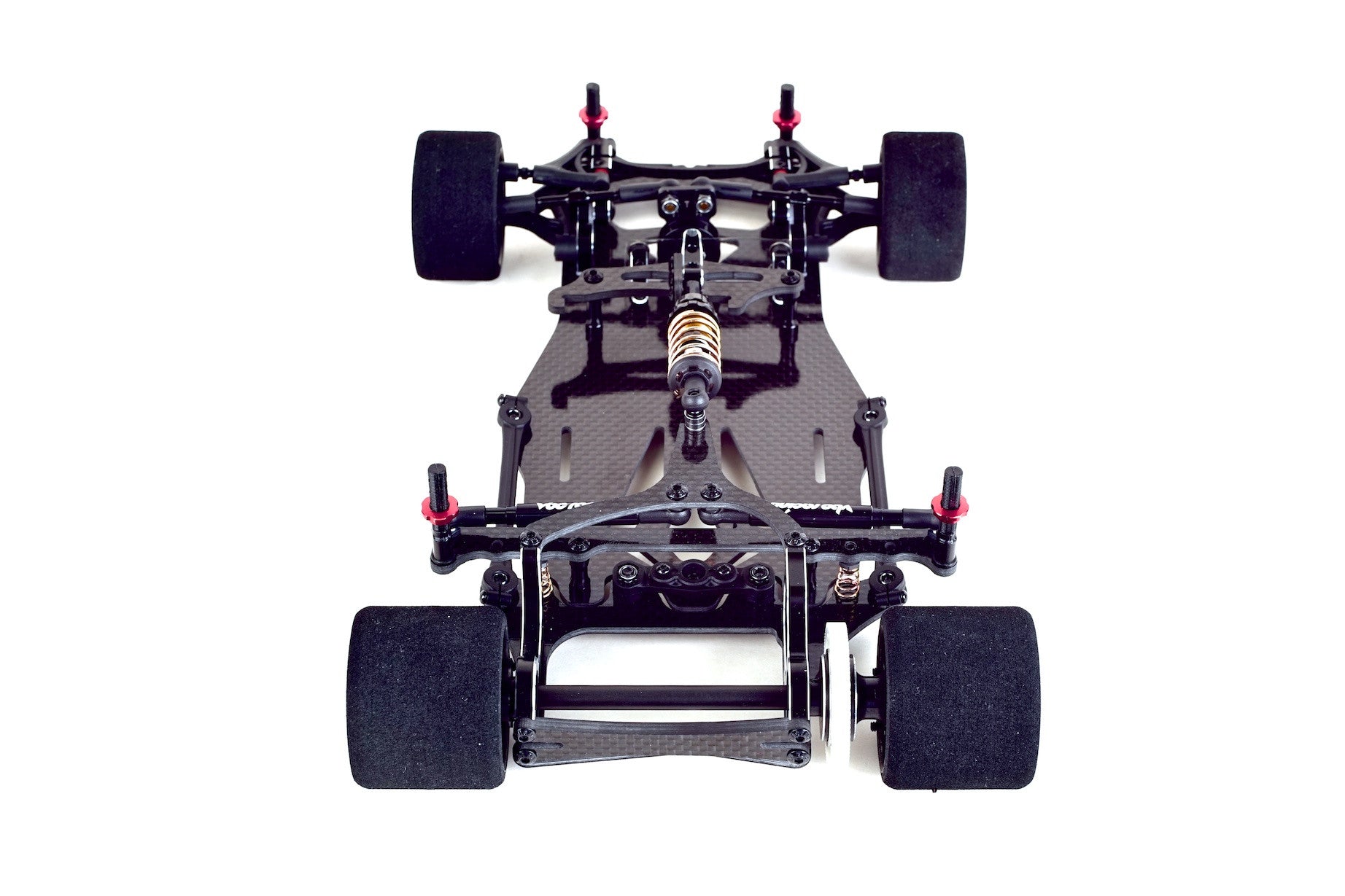

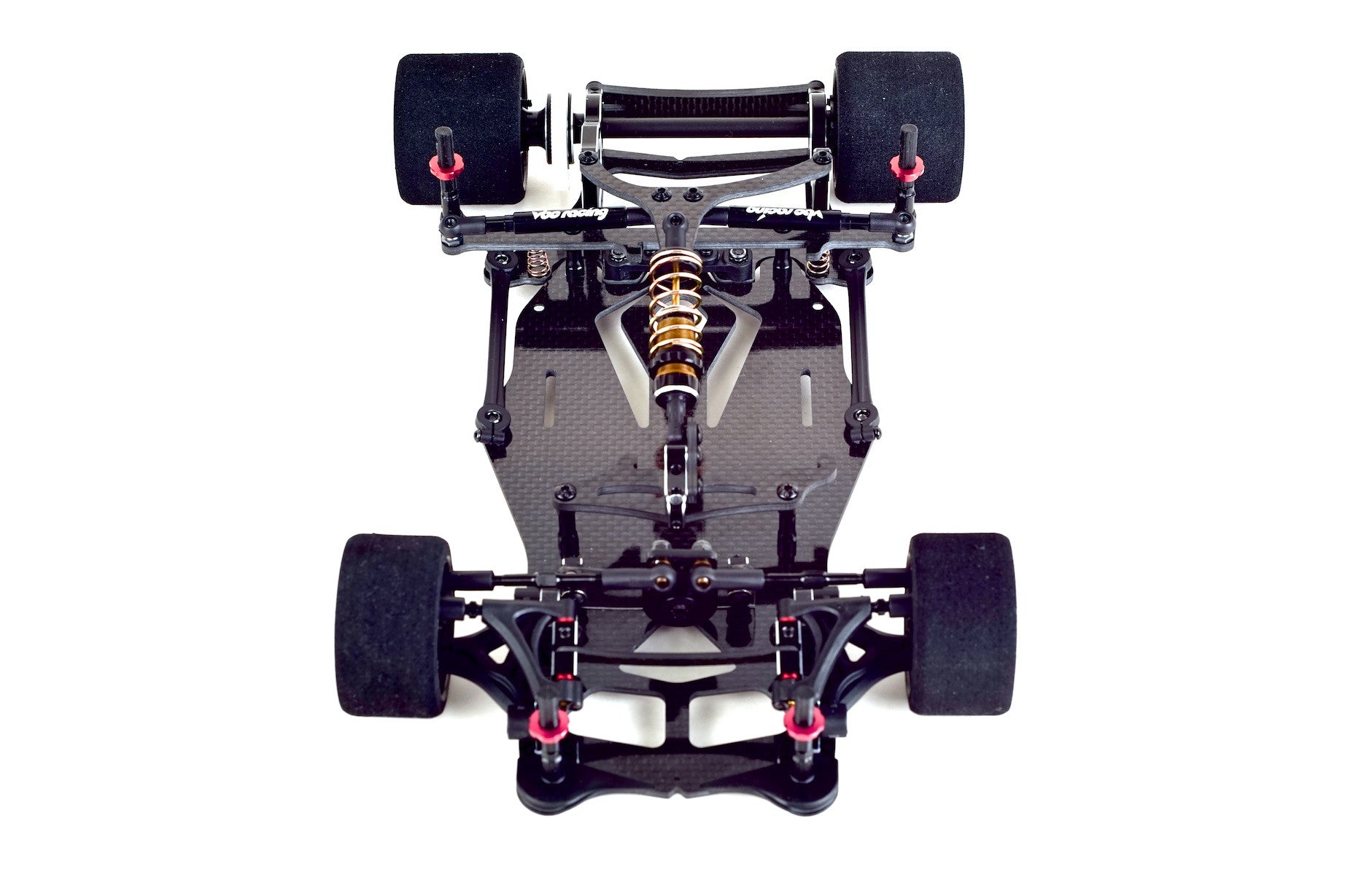

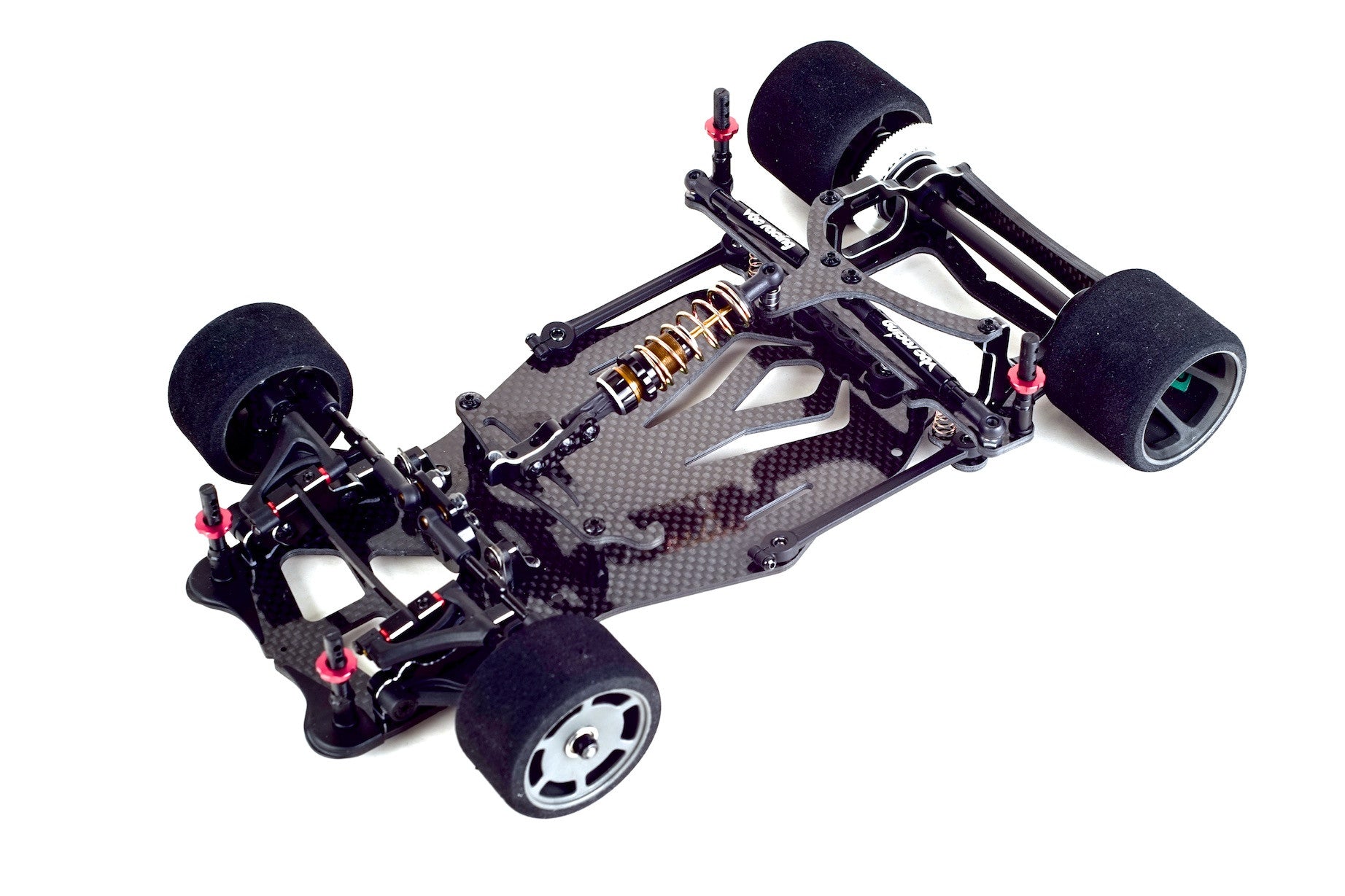

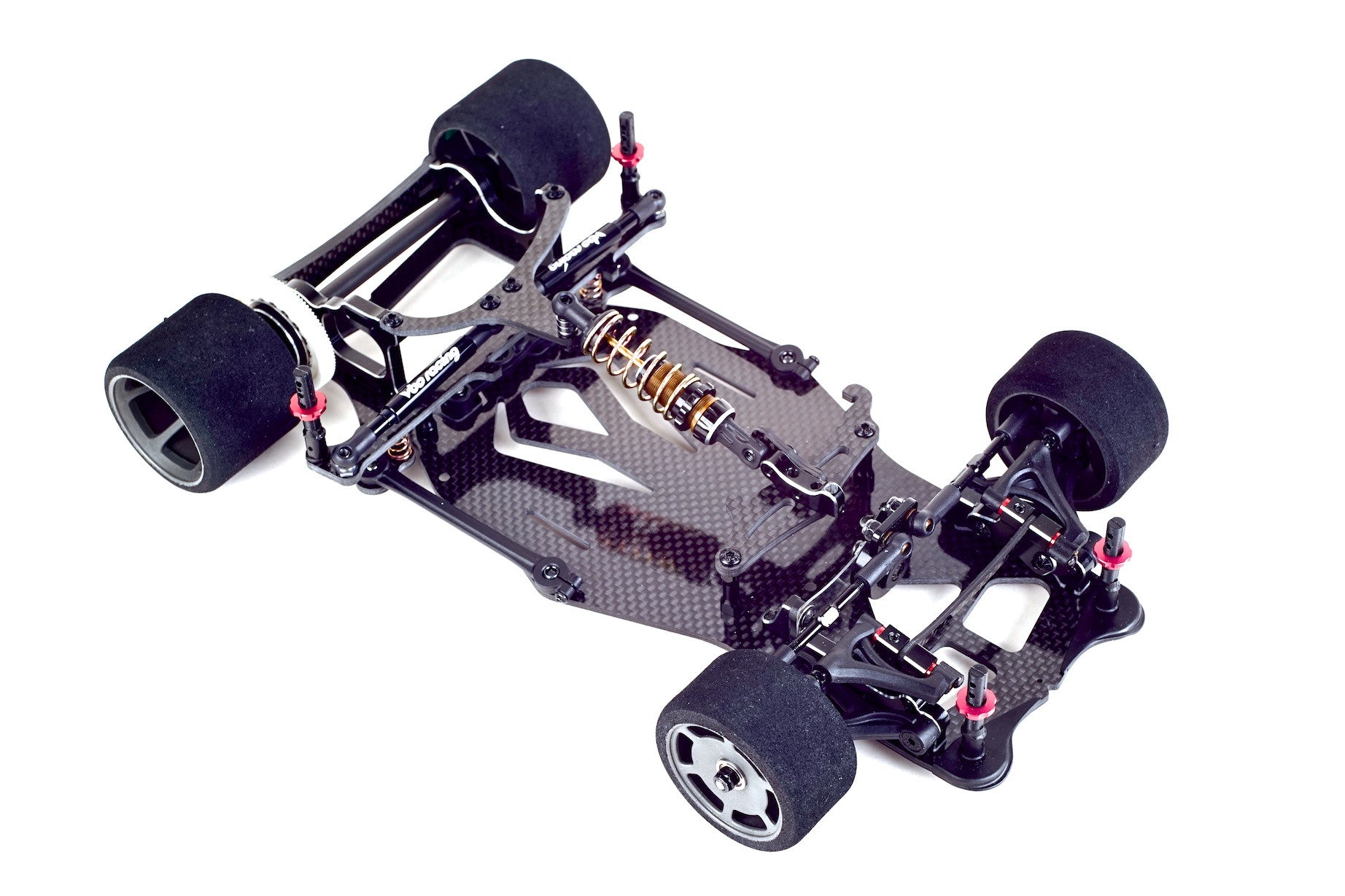

Lightning12 Version 2 1/12 Pan Car Kit D-05-VBC-CK10

Base on the race proven Lightning12. The new VBC racing Lightning12 V2 includes multiple upgrade to boost the performance to the next level.

Ultra strong V2 composite materials to provide direct and accurate handling. Aluminum alloy shock mount with intergraded antenna mount to accept anti rollover antenna. 7075 Aluminum alloy body height adjuster. Titanium nitride coated wear resistance kingpin, arm pin and shock shaft. The Lightning12 V2 is a highly tunable machine to bring you to the winner circle.



Composite V2 suspension parts for zero slop and precious handling

7075 Aluminum alloy shock mount with intergraded antenna mount for fiberglass anti rollover antenna (sold separately)

Titanium nitride coated kingpin, arm pin and shock shaft for long life and smooth operation

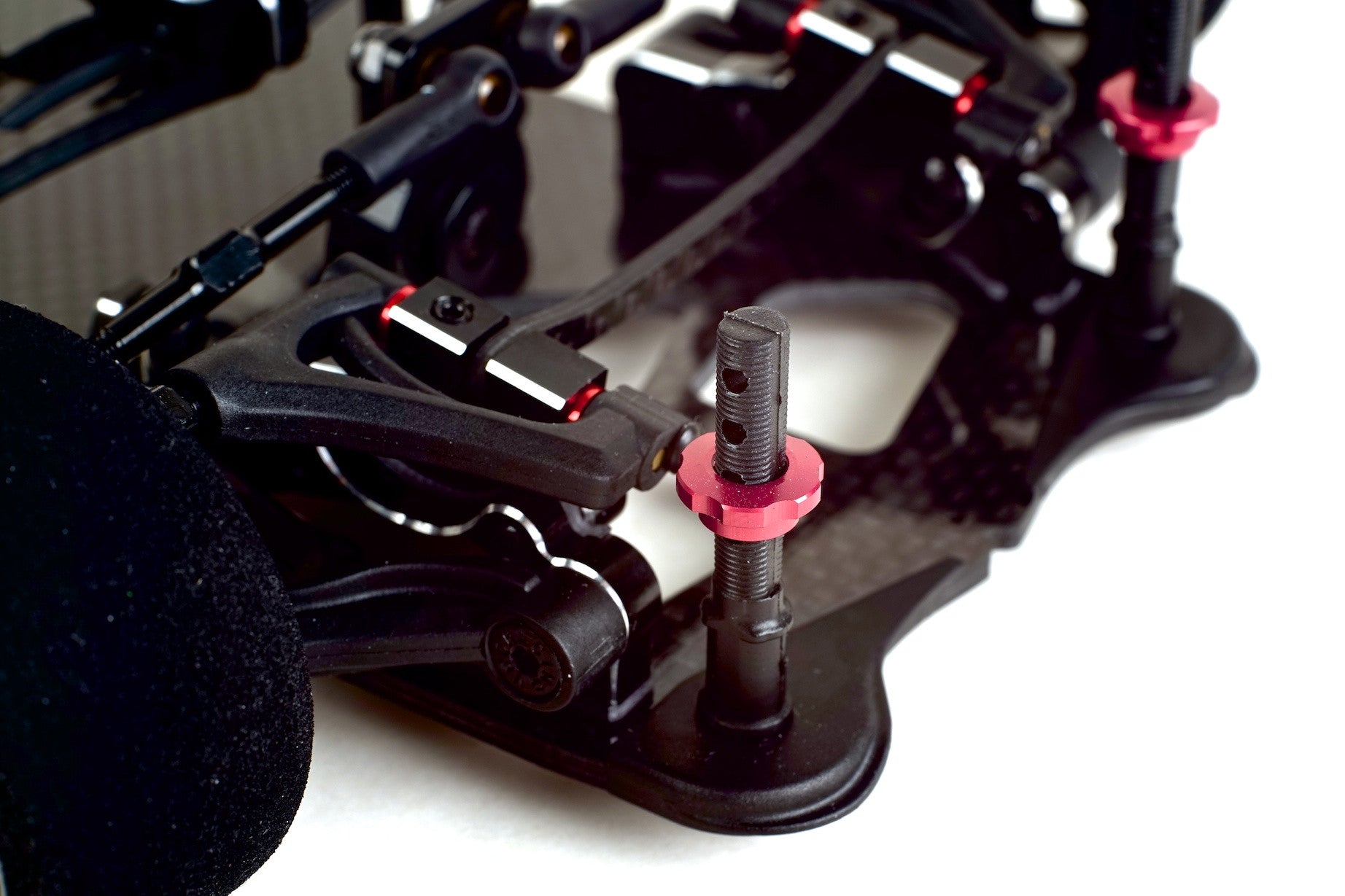

Anodized aluminum alloy body height adjuster

2.5mm carbon fiber chassis

Offset inline battery placement for better balance and weight transfer

Aluminum alloy servo mount design to accept different servos

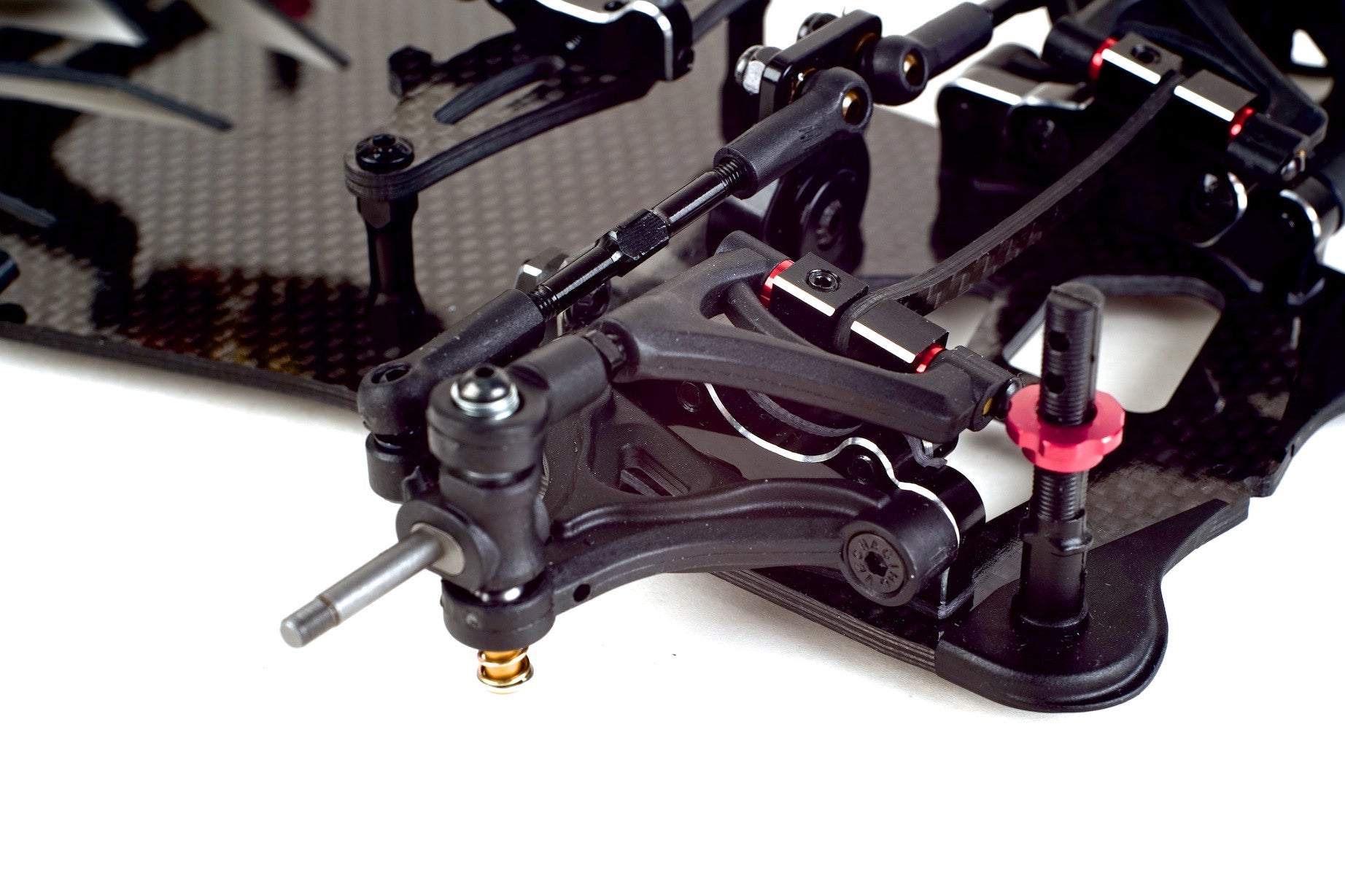

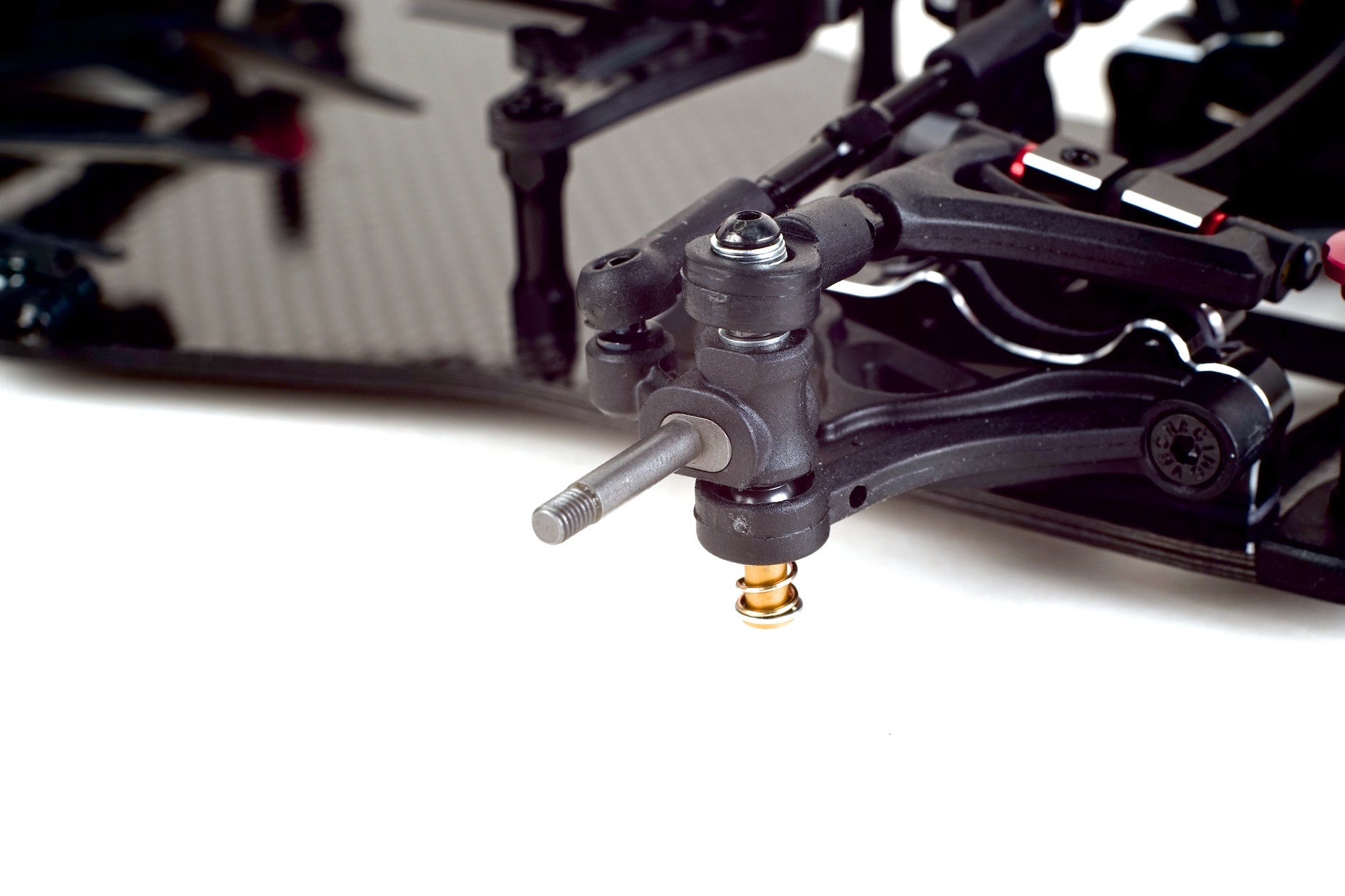

Fully adjustable front end

CNC-machined lowered front arm bulkheads for precise building and adjustment

CNC-machined aluminum caster blocks for durability and to stiffen the upper arm

Reactive caster adjustments 7.5, 5.0, or 2.5

Precise machined front axles

Front ride-height adjustability with one piece shims

Front upper brace to reduce flex for tuning for different track condition

New SuperSteel front camber linkåÊturnbuckles for adjustment and durability

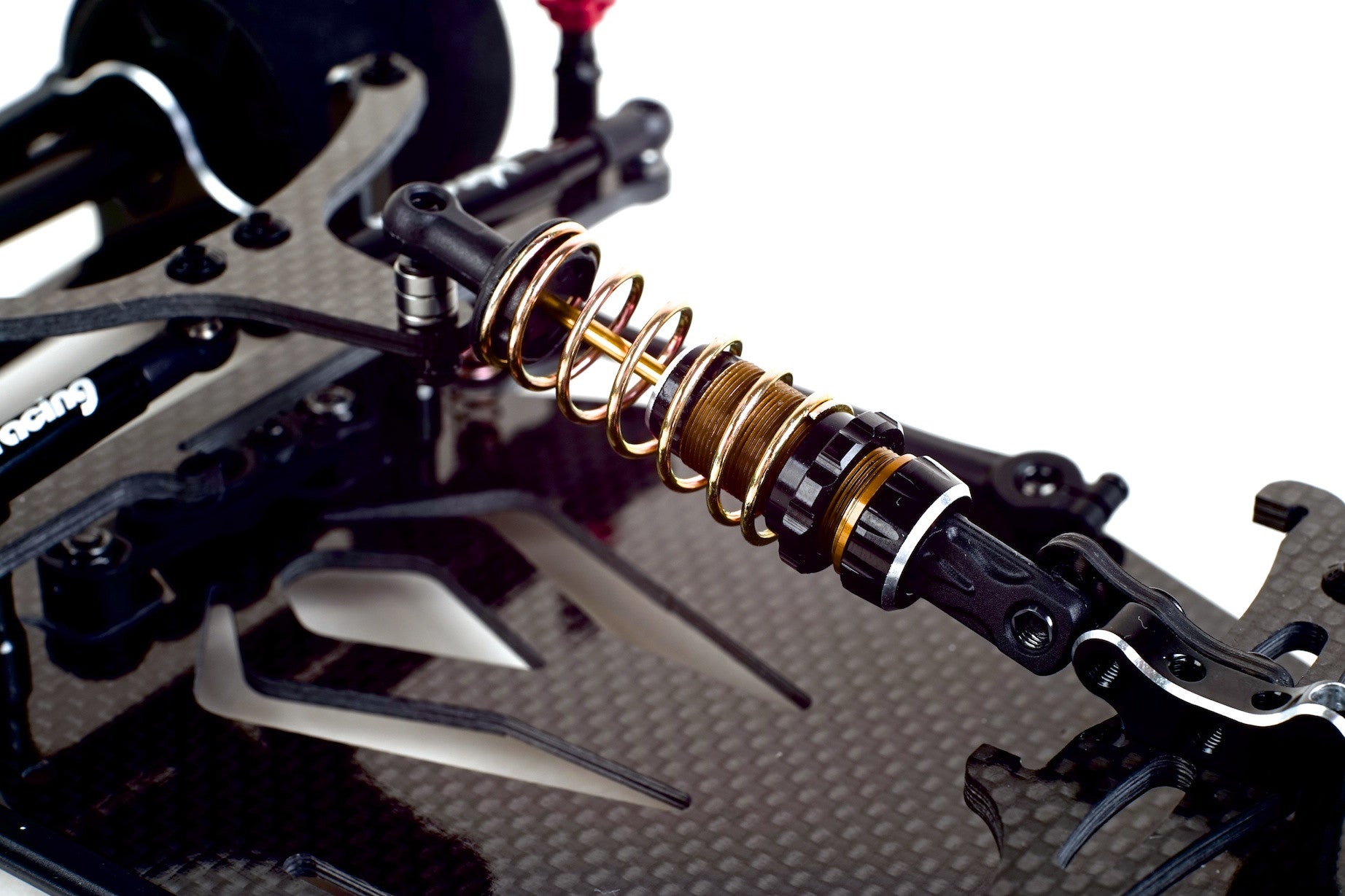

TBXcenter shock designed for super smooth dampening, fully adjustable, and long shock

Aluminum hard anodized shock body

Aluminum shock cap

Soft silicone bladder

Soft silicone o-rings

Aluminum lightweight rear bulkheads with simple ride height adjuster

Open rear motor mount design for easy access for brushless operation

2.5mm carbon fiber cross brace for support from side hits and flex

Super smooth and slop free VBC Racing Center pivot

Side links made of a special VBC Racing blend to give maximum durability and a slop-free fit

Side springs can be mounted 2 different positions to suit different racing condition

Laterally mounted dampening tubes for smooth side to side dampening making the car easier to drive and easier to work on

Rear carbon fiber axle with lightened alloy right and left hubs for minimum rotating mass

Compatible with all Lightning12 Version 1 parts

*Wheels, tires, car body, pinion gears, batteries and electronics are not included.
