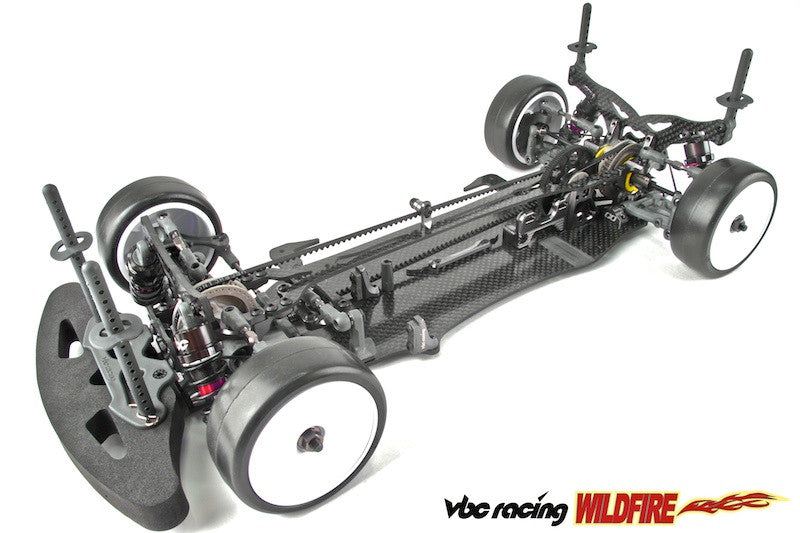

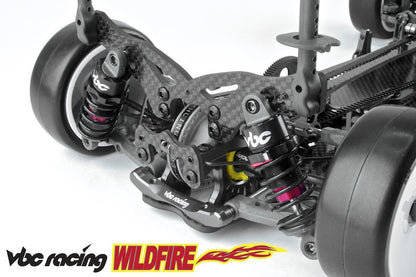

VBC Racing WildFire 1/10 Touring Car Kit D-05-VBC-0005

VBC Racing designed the WildFire with racers in mind. Using a highly sophisticated CAD system, the VBC Racing WildFire was developed to provide maximum performance on any size track, regardless of the surface. High quality parts such as USA manufactured carbon fiber, 7075 aluminum, ball bearings and VBC developed belts and screws are used throughout providing the user with a lightweight and durable competition level touring car.

Features:

  • 2.5mm USA Carbon Fiber chassis
  • 2.0mm USA Carbon Fiber upper deck
  • 3.0mm USA Carbon Fiber front and rear shock towers
  • Adjustable battery mounts
  • 7075 Aluminum low CG steering system with ball bearings
  • 7075 Aluminum front and rear lower arm mounts
  • 7075 Aluminum low CG motor mount with heat dispense design
  • All 7075 Aluminum turnbuckles, connector balls
  • Ultra smooth rear gear differentials with 7075 drive cups
  • High precision front spool
  • 7075 Aluminum hex wheel adapter with offset markings
  • 7075 Aluminum four settings adjustable top roll center mounts
  • 7075 Aluminum center belt tensioner
  • Full ball bearings
  • VBC Racing silk smooth front and rear drive belts
  • Hardened Steel CVD's
  • VBC Racing composite front and rear suspension arms, steering blocks, C-hubs, rear uprights and ball connectors

    In Depth Features:

    • Race developed torsional chassis for maximum performance on any type of track surface or size

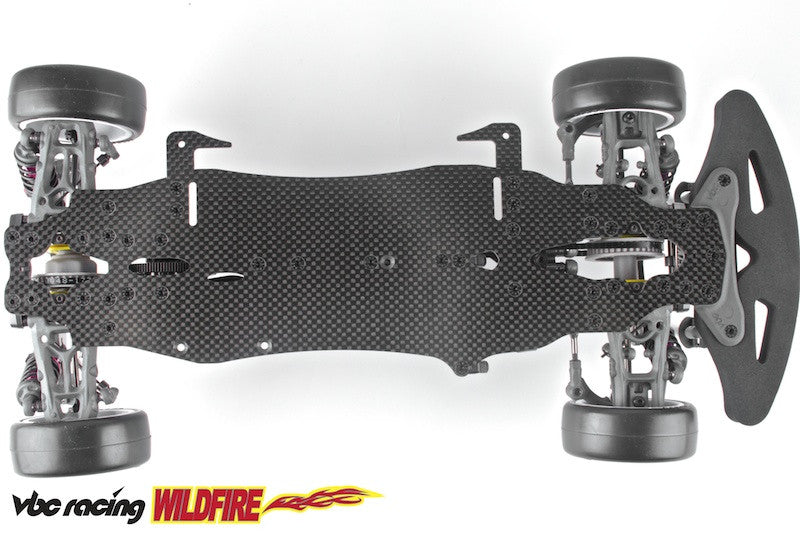

    • The main chassis and upper deck were developed from a highly sophisticated CAD system which simulates the actual chassis roll during low and high speed corners with different track layout parameters. The chassis shape was then derived to provide enough flex for fast corners yet rigid enough during high speed straight lines
    • The narrow chassis design moves the weight as close to the center line as possible increasing steering response with an adjustable low profile carbon fiber battery mounting system

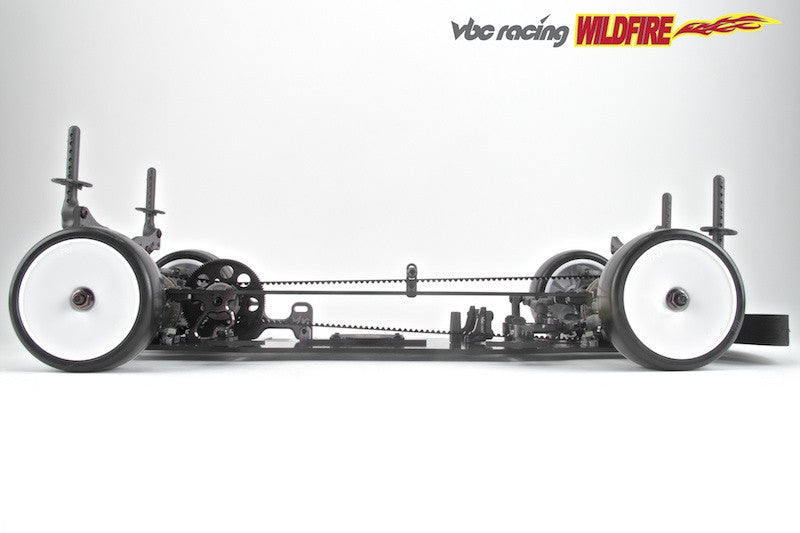

    • Light weight true spinning gear differentials system with self developed front and rear belts creating a smooth drive train system
    • VBC screws designed to withstand the impact of RC car racing. The shape of the screws are specially shaped to "lock" the chassis with a 'click'

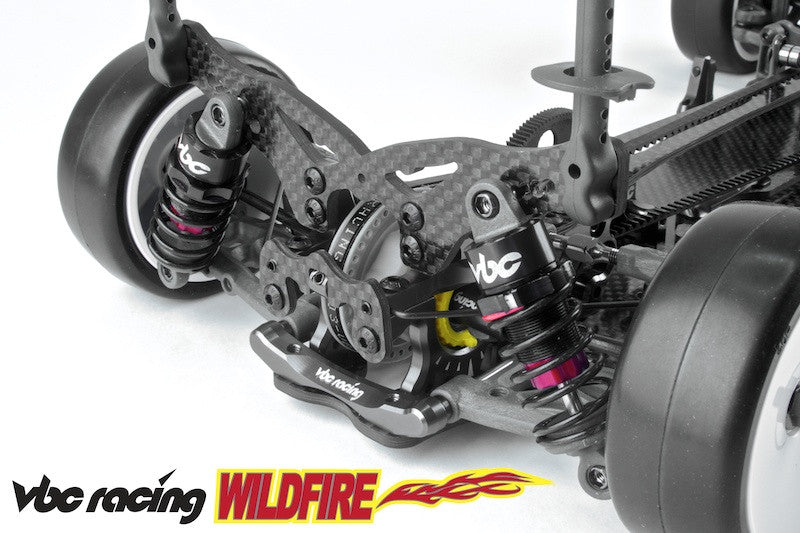

    • Low profile 3mm carbon fiber front and rear shock towers for lowest CG possible

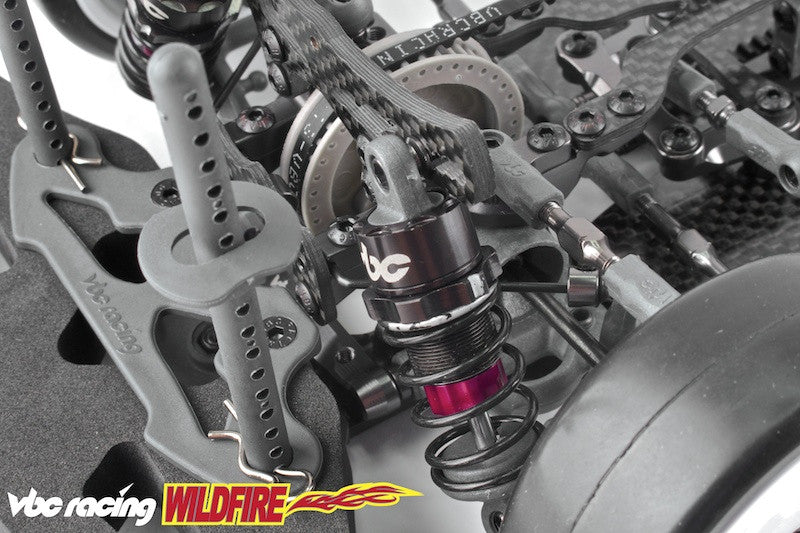

    • Light weight 7075 aluminum ultra smooth oil filled shocks offers smooth suspension operations
    • 7075 aluminum front and rear suspension mounts with optional suspension mount angles
    • Light weight carbon fiber stabilizer plate

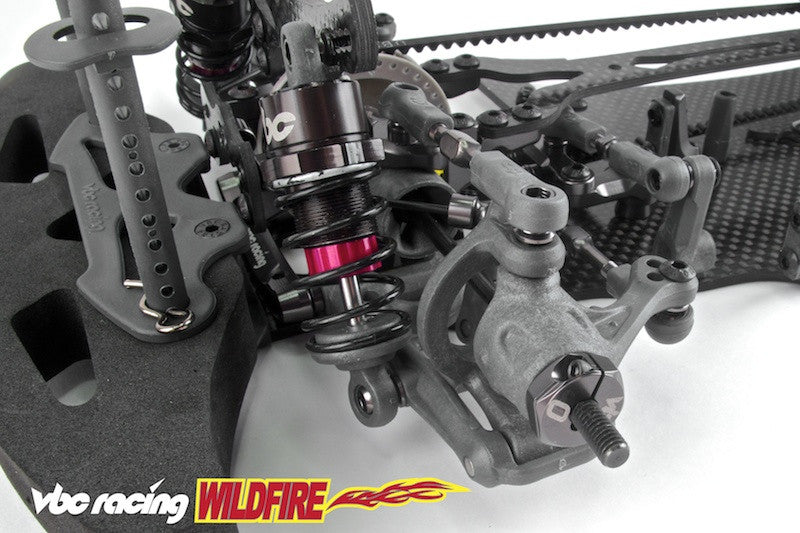

    • Light weight, high crash resistance and stiff VBC Racing formulated composite suspension parts to maintain proper geometry during hard corners
    • Hardened steel CVD’s with pin retainers to ensure smooth operation throughout the race
    • Unique composite ball connectors (optional ball connector wrench) and 7075 aluminum turnbuckles with directional markings

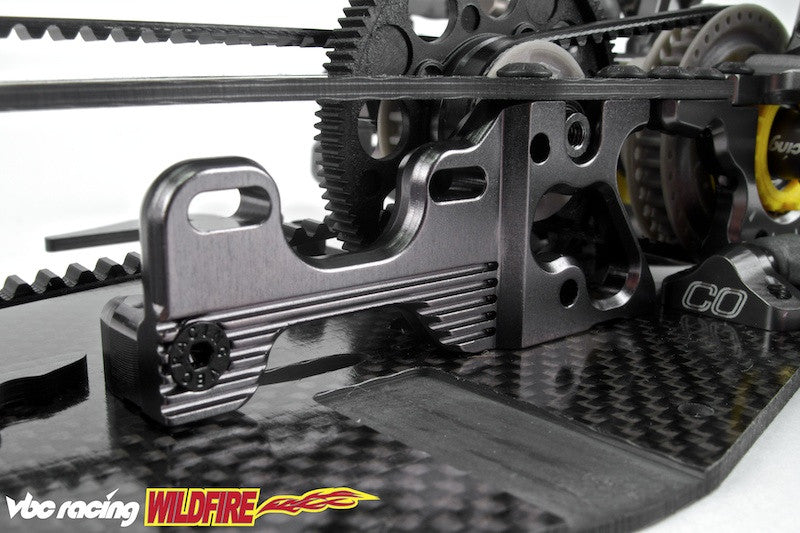

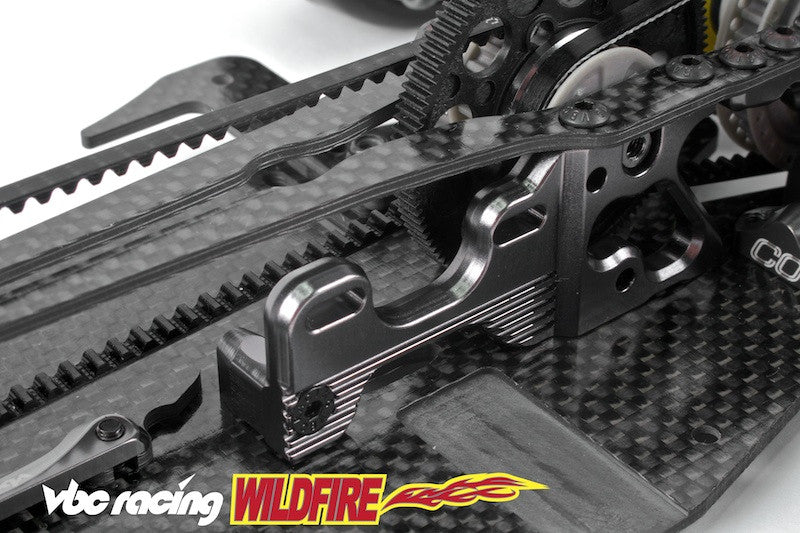

    • Precision one piece high quality 7075 aluminum low CG motor/spur gear mount with motor heat sink fins
    • Two piece 7075 aluminum inner arm mounts to improve handling during corners and to eliminate chassis tweaks
    • Unique center pulley/spur gear shaft with pin locking mechanism

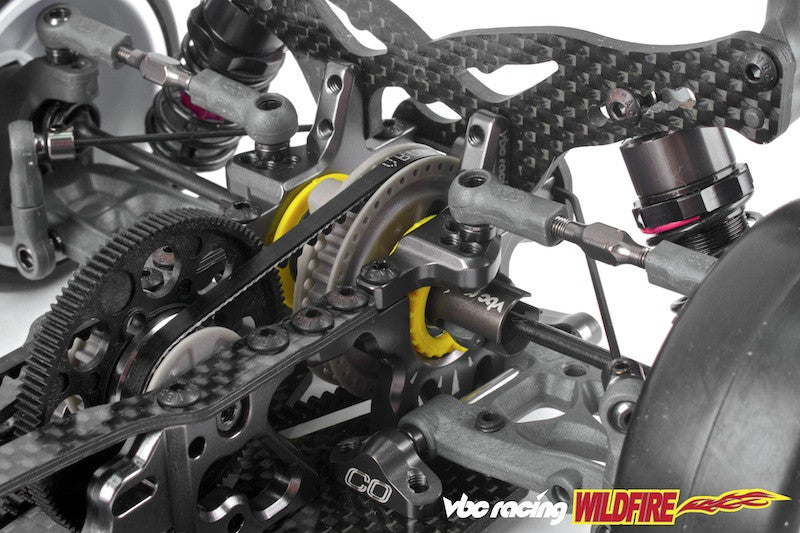

    • It is always a hassle when adjusting the belt tensions on today’s car, but with the WildFire, all you need to do is slightly unscrew the bottom 2.5mm screws and turn the yellow tensioner rings, tighten the 2.5mm screws and you are done
    • Front and rear suspension arms are with four point’s shocks settings
    • Light weight and highly durable front spool with high precision machined spool shaft

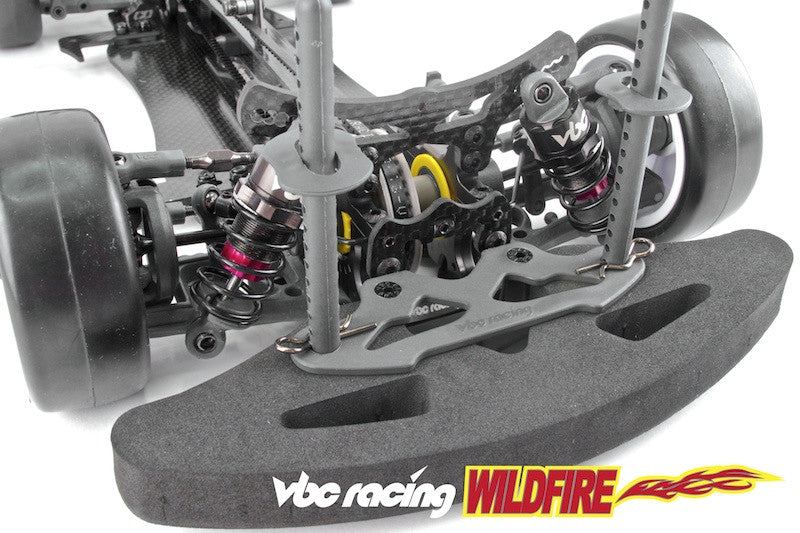

    • Light weight front bumper with transponder cut out. Optional carbon fiber top bumper plate with transponder mount
