VBC Racing

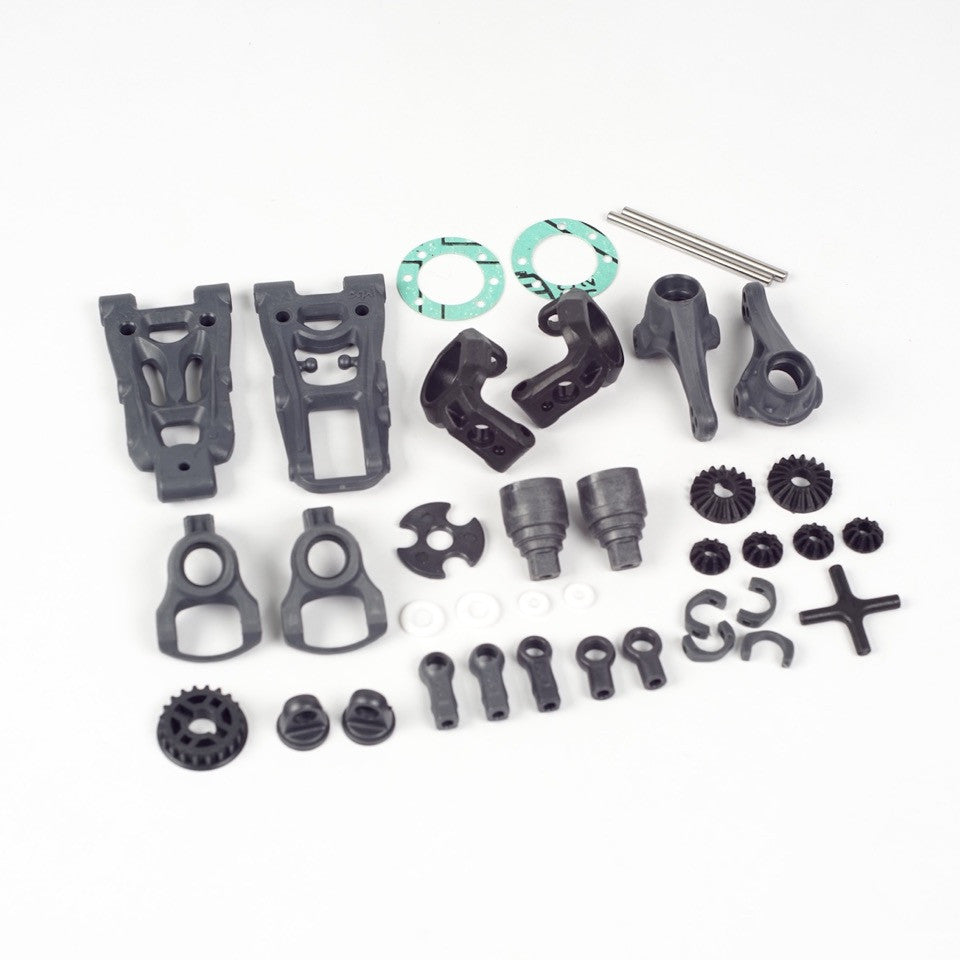

Ghost Evo Support Kit D-05-VBC-0201

Package includes the following:

Parts Number Parts Descriptions Quantity in a pkg
A-03-VBC-0018 Diff Gear 10T 4
A-03-VBC-0019 Diff Gear 18T 2
A-03-VBC-0020 Diff Gear Shaft 1
B-03-VBC-0005 Diff Housing Sealer O-Ring 1
B-03-VBC-0006 Diff Shaft Sealer O-Ring 2
B-03-VBC-0004 Seal Gasket 2
A-03-VBC-0039 Turnbuckle Cup 2
A-03-VBC-0056 Turnbuckle Cup S 1
A-03-VBC-0023 20T Center Pulley 1
A-03-VBC-0060 Center Pulley Spacer 1
A-03-VBC-0055 Front Spool Outdrive 2
A-03-VBC-3027 V2 Front Suspension Arm 1
A-03-VBC-3028 V2 Rear Suspension Arm 1
B-02-VBC-0029 Suspension Arm Pin 2
A-03-VBC-0037 Rear Suspension Upright (Composite) 2
A-03-VBC-0038 Shaft End Shoe 4
A-03-VBC-0079 Steering Block Version 2 (Composite) 2
A-03-VBC-0104 Right C-Hub Version 2 1
A-03-VBC-0105 Left C-Hub Version 2 1
A-03-VBC-0066 Shock Bottom Connector 2
A-03-VBC-0042 Shock Top Connector 2
B-03-VBC-0012 Shaft Sealer O-Ring 2
